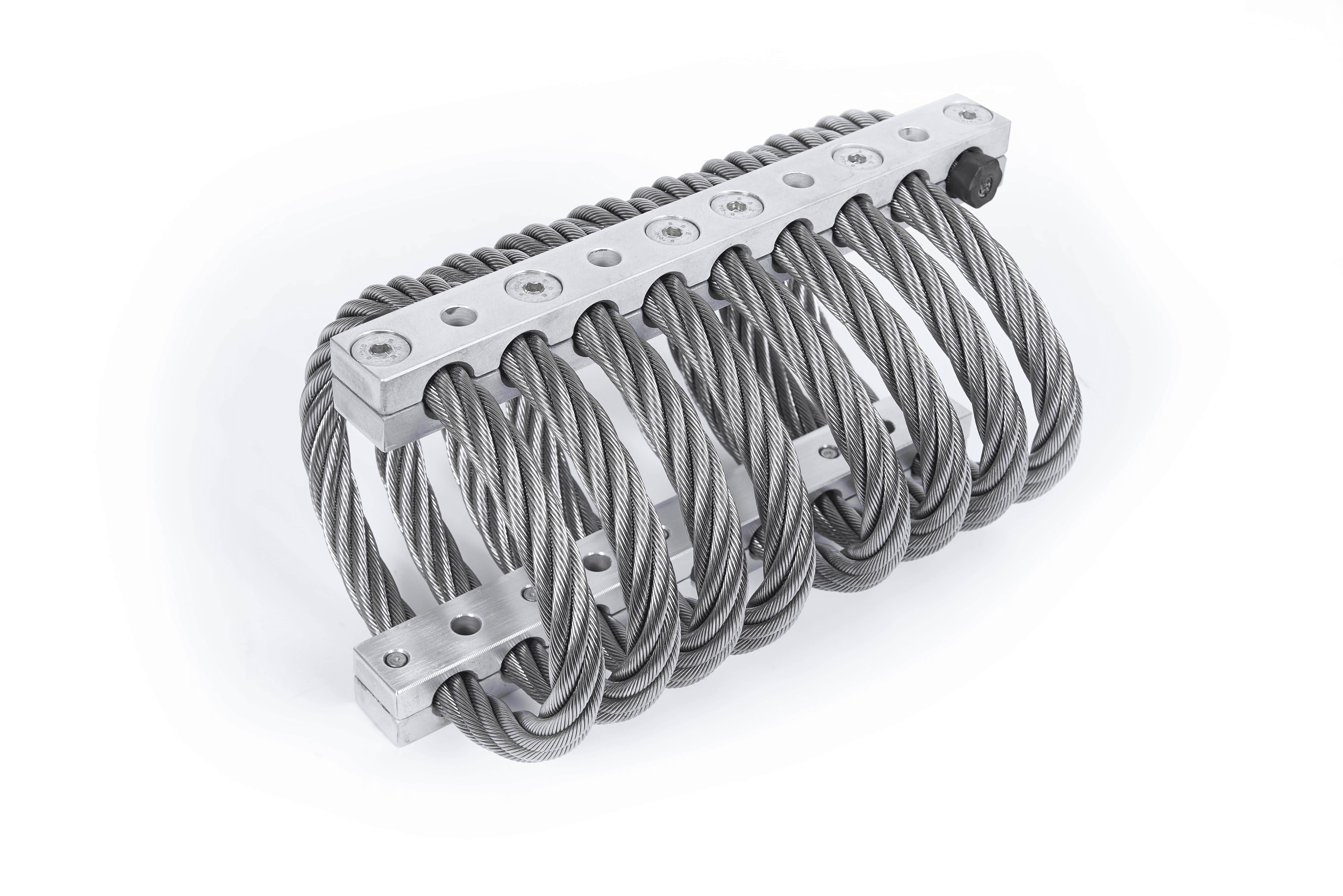

Helical wire rope isolators

High-Performance Shock and Vibration Protection Solutions

Socitec’s line of multidirectional wire rope isolators is designed to handle an extreme range of loads with outstanding strength, reliability, and long-term durability. Our helical wire rope isolators come in standard models featuring a scalable number of loops and can also be custom-designed to meet your exact requirements. Need extra reassurance? Our wire rope isolators are engineered for optimal performance, ensuring reliable protection under even the most demanding conditions, and our team of engineers can help ensure that you have picked the correct isolators for your application.

FULL HELICAL mounts :

  1. FH04
  2. FH08
  3. FH12
  4. FH16
  5. FH20
  6. FH24
  7. FH28
  8. FH32
  9. FH36
  10. FH40
  11. FH44
  12. FH48
  13. FH56
  14. FH60
  15. FH64
  16. FH68
  17. FH72
  18. FH76
  19. FH80
  20. FH84
  21. FH92

  • Fully metallic isolators
  • Combined shock/vibration isolation, starting from 5 Hz
  • High damping ratio (15-20% equivalent viscous damping)
  • Interfaces: 2 to 4 attachment points per isolator between the equipment to be protected and the foundation
  • Static load per mount ranging from 0.22lbf to 17kipf
  • Exceptional reliability and long service life
  • Resistant to long term degradation
  • Corrosion resistant
  • Operating temperature: -290°F to +570°F
  • Customizations available upon request (material, dimensions, number of loops, special inserts, etc.)

  • Design

    Our team creates customized isolation solutions.

  • Consulting

    We offer cutting-edge engineering expertise and provide ongoing application support.

  • Manufacturing

    We design and build our own solutions to guarantee maximum quality control and design adaptibility.

  • Origin

    Our products are designed and manufactured in both the United States and Europe.

contact

Socitec supports you in defining your specific needs and technical specifications to develop customized solutions.
